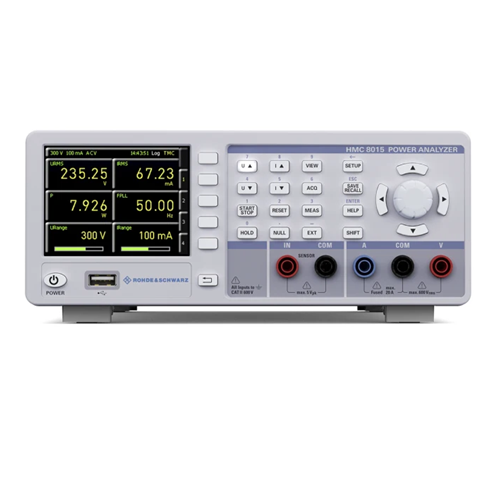

The R&S®HMC8015 power analyzer is the first compact tester for AC/DC load and standby current characterization that enables measurements without additional tools such as a computer or remote infrastructure. In addition to a numerical and graphical display with 26 key parameters, the instrument delivers performance and compliance protocols in line with IEC 62301, EN 50564 and EN 61000-3-2.
Caratteristiche:
| Bandwidth | DC to 100 kHz |
| Sampling rate | 500 ksample/s |
| Resolution | simultaneous display of current and voltage, each with 16-bit |
| Voltage input | up to 600 VRMS |
| Current input | up to 20 ARMS |
| Basic accuracy | 0.05 % of reading |
| Frequency accuracy | 0.1 % of reading |
| Input impedance | 2 MΩ |
HMC8015 COMPLETE PACKAGE
Contains serialized product+options:
R&S®HMC8015 POWER ANALYZER
3593.8646K02
consisting of:
-R&S®HMC8015 POWER ANALYZER
-R&S®HOC151 ADVANCED ANALYSIS
-R&S®HOC152 ADVANCED I/O
-R&S®HOC153 COMPLIANCE TEST"
brochure
fact_sheet
user_manual
programming_manual
